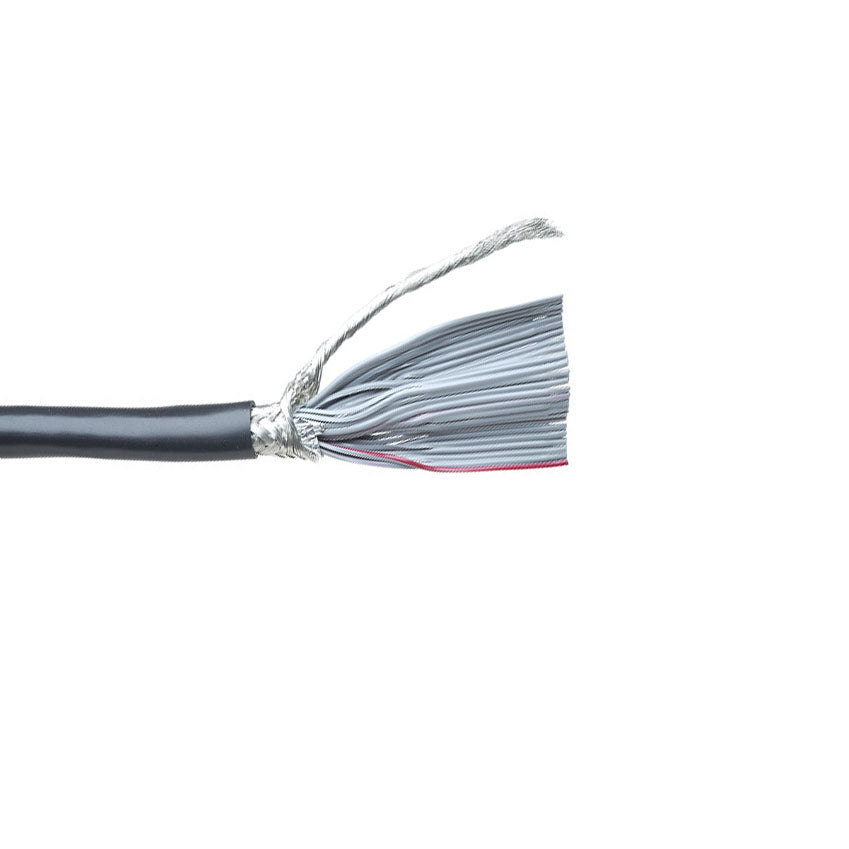

Alpha Wire Multi Conductor Foil Shield 150V Insulation Flat Communication and Control Cable

Alpha Wire Multi Conductor Foil Shield 150V Insulation Flat Communication and Control Cable
Roll over image to Zoom

Alpha Wire Multi Conductor Foil Shield 150V Insulation Flat Communication and Control Cable

SKU: NNC21455X

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

  Product Name Length Price (Per FT.) Action
Alpha Wire 3590/10 28 AWG 10 Conductor Foil Shield 150V Insulation Flat Communication and Control Cable
Product Name

Alpha Wire 3590/10 28 AWG 10 Conductor Foil Shield 150V Insulation Flat Communication and Control Cable

Length
/FT
Price (Per FT.)

$8.76

Available
Min: 1 FT
Max: 1000000 FT
Action

Product Information

Specification

Communication and Control 150V, Jacketed, Foil Shield, Flat Cable, 0.050 (1.27 mm) Centerline

UL AWM 2912 UL Type CL2

Operating Temperature:

• -20°C to +105°C

Materials:

• Stranded tinned copper conductors
• Extruded slate PVC insulation with red polarity stripe
• Aluminum/polyester/aluminum foil shield Two 28 AWG (0.09 mm2) stranded tinned copper drain wires
• Slate PVC jacket, 0.030 (0.08 mm) thick

Electrical Characteristics:

• Capacitance: 20 pF/ft (65.6 pF/m) nom. at 1 MHz
• Propagation delay: 1.45 ns/ft (4.8 ns/m) at 0.18 ns risetime
• Impedance: 70 ohms
• Near-end crosstalk: 5.5%
• Far-end crosstalk: 1.6%
• Crosstalk measured on adjacent lines, 3.5 ns risetime

Availability:

100 ft (30.5 m)
May contain multiple lengths


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
