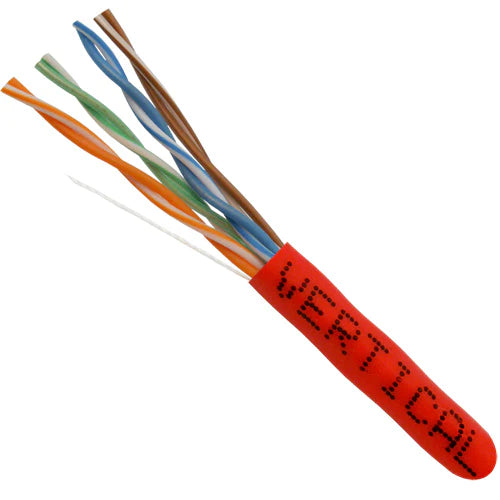

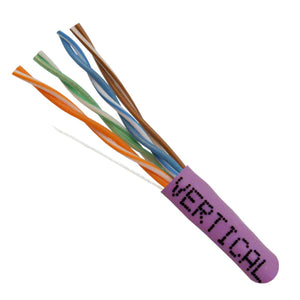

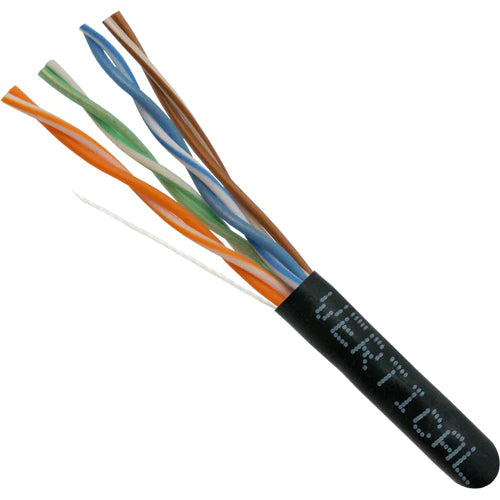

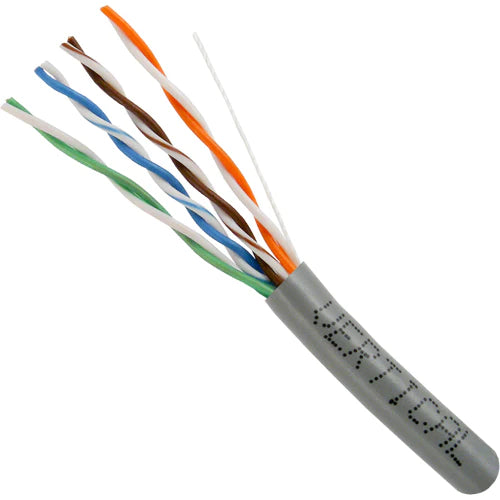

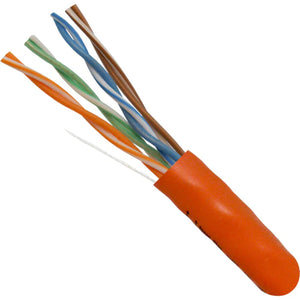

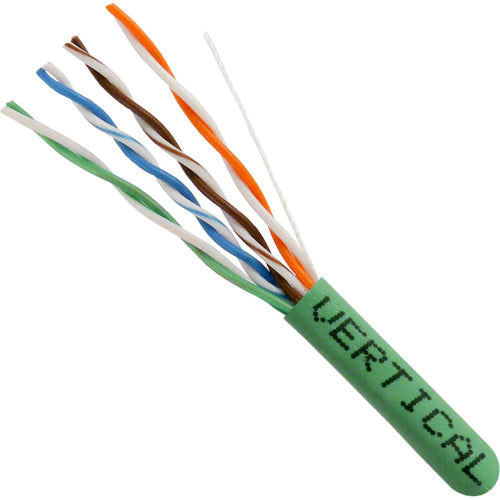

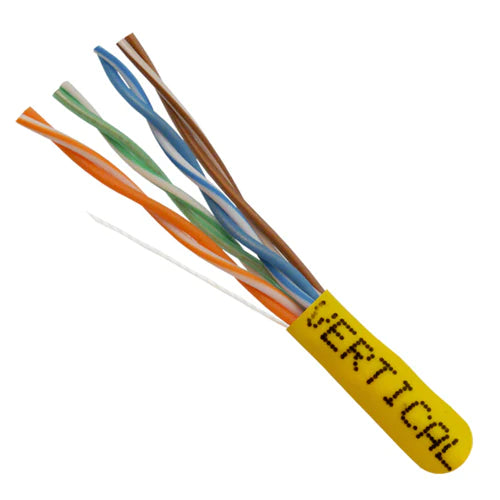

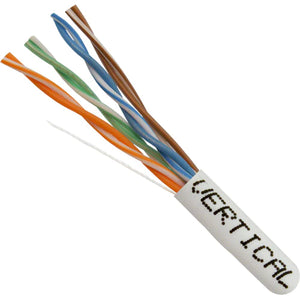

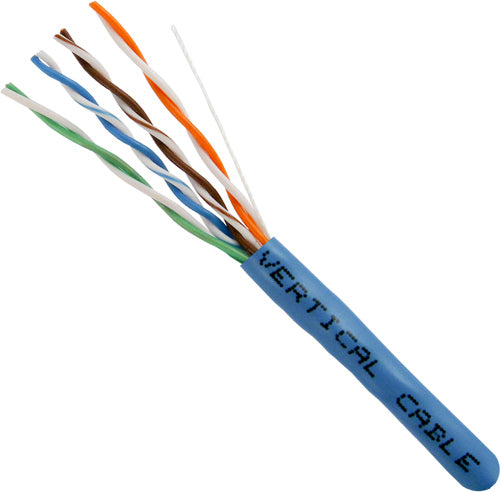

1000' 24 AWG 4 Pairs UTP Stranded Bare Copper CAT6 550MHz Cable

Product Information

Specification

⦿ 550 MHz Bandwidth for Data Applications,
     Fast Ethernet and 155 Mbps TP-PMD/CDDI

⦿ Category-6 Unshielded Twisted Pair

⦿ Easily Identified Color-Striped Pairs

⦿ Exceeds ANSI/TIA-568-C.2, ISO/IEC-11801

⦿ 1000ft Pull Box

Technical Data:

⦿ Rated Temperature (ºC): 70

⦿ Rated Voltage (V) 30

⦿ Product Standard Certification CM

⦿ Flammability Test IEC-332-1

Conductor Solid Bare Copper:

⦿ Size 24 AWG

Insulation PE:

⦿ Average Thickness (mm) 0.20

⦿ Insulation Diameter (±0.005mm) 0.98

⦿ Twisted Pair Diameter (±0.01) 1.96

⦿ Separator No

Assembly Diameter 4.80
Jacket PVC


⦿ Average Thickness (mm) 0.60

⦿ Min. Point Thickness (mm) 0.54

⦿ Outer Diameter (±0.10mm) 6.20

⦿ Rip Cord: Yes

 Color of Pairs:

⦿ Pair 1: Blue, White-Blue

⦿ Pair 2: Orange, White-Orange

⦿ Pair 3: Green, White-Green

⦿ Pair 4: Brown, White-Brown

Marking on Jacket:

⦿ VERTICAL 4001453 cETLus VERIFIED CM UTP 4PR 24AWG CAT6 550MHz ANSI/TIA-568-C.2 STRANDED RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
