16/2C FPLP Solid PVC Plenum Unshielded 75C Fire Alarm Cable 300V

16/2C FPLP Solid PVC Plenum Unshielded 75C Fire Alarm Cable 300V

Description:

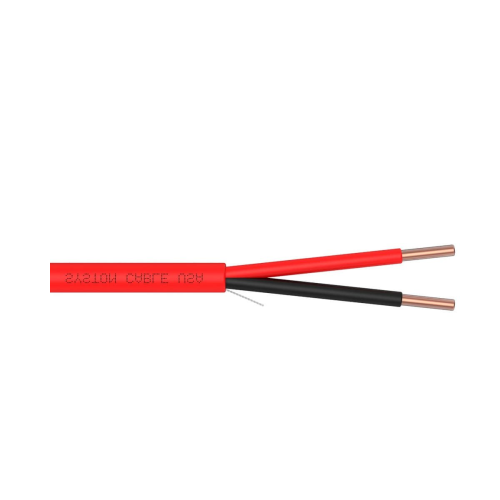

Low smoke PVC insulated solid bare copper conductors, twisted with an overall red low smoke PVC jacket* with rip cord. Shielded version has an aluminum tape and drain wire.

Also known As:

16/2C FPLP Cable, 16/2C Fire Alram Cable, 16/2C Plenum FPLP Cable, 16/2C Unshielded FPLP Cable, 16/2C Solid FPLP Cable, 16/2C Red Fire Alram Cable, 16/2C 75C FPLP Cable, 16/2C Fire Protection Cable, 16/2C PVC FPLP Cable.

Application:

• Fire Protection
• Alarm
• Signal
• Monitor/Detection
• Audio Circuits
• Control Circuits
• Initiating Circuits
• Notification Circuits

Conductor: Solid Bare Copper*

Insulation: 18-16 AWG .008”LSPVC ,14-12 AWG .010”LSPVC

Jacket: Low Smoke PVC

Shield: Aluminum Mylar

NEC Articles:

• 18-16 AWG: 760 FPLP, 800 CMP, 725 CL3P
• 14-12 AWG: FPLP, CL3P, FT6

Voltage Rating: 300 V

Temp. Rating: -5°C to +75°C

Drain Wire: 24 AWG

Equivalent: Priority -P10435, 12-02FPLP/PLEN, Belden 6020UL, Lapp KLTFPLP12/2-1N, ADC - 117029

Specification:

AWG: 16
Conductor: 2
Stranded: Solid
CAP P/FT: 37
Outer Jacket Thickness: 0.015 In
Nominal OD: 0.164 In
Weight: 26 lbs/MFT
Part No: 981602
